Plasma Arc In Magnetic Fields

Magnetic Games — Sat, 05 May 2018 14:00:03 +0000

Plasma arcs are influenced by magnetic fields. In this video you can see that by approaching a neodymium magnet to a plasma arc, it is diverted. You can reproduce this experiment simply, below the links to the products I have used provided by Gearbest.com

DC 3.7V to 1000kV Power Module: https://goo.gl/j5BFkz
Push Button Switches: https://goo.gl/eVXpjH
3.7V Lithium-ion Battery: https://goo.gl/4m6xAL
Multifunctional Battery Charger: https://goo.gl/NmCztY
3.7V 18650 Battery Holder: https://goo.gl/R5AAvz
Helping Hands Six Arm Soldering Station: https://goo.gl/WHMvq2

Subscribe now to my channel http://bit.ly/MGSubscribe

On my channel you will find all the ways to have fun with magnets divided into 3 main categories:
Classical magnetic experiments such as magnetic levitation, homopolar motors, small magnetic weapons, Gauss cannons, gears, magnetic field viewers and much more.
Satisfaction video like the construction of magnetic sculptures, slime and magnetic putty and product review.
ASMR relaxing videos to watch but above all to listen preferably with stereo headphones to be able to appreciate the particular sounds of the magnets

other videos made with the collaboration of Gearbest
https://www.youtube.com/watch?v=wmYEX3VnZn0
https://www.youtube.com/watch?v=UOqQH2tmM7A

Follow me on my website too
http://www.magneticgames.eu/
Facebook
https://www.facebook.com/MagneticgamesIt
Instagram
https://www.instagram.com/magneticgames_it/
Twitter
https://twitter.com/magneticgamesIT

Magnet Pyramid

Magnetic Games — Sat, 03 Mar 2018 15:00:03 +0000

Do you remember the Geomag? With the magnets I used in this video you can do the same shapes, but in my opinion the sculptures built with these magnets are much more sexy.
Please let me know in the comments if you find this kind of video editing relaxing or satisfying and if you would like to see new magnetic sculptures with magnets of this shape.
I thank Supermagnete for providing these magnets for free , here is the link to the product:

Magnets used in the video / Imanes utilizados en el video

Rod magnet 5x25mm

Steel Balls 10mm

Follow Me

Subscribe now to my channel http://bit.ly/MGSubscribe

If you liked this video, you might like these too:
Magnet Satisfaction playlist
https://www.youtube.com/watch?v=eB76LFxOiJo&list=PLigZQCghm_vwklFTsmjqjFZDdwqvLqBVA

Magnetic Sculpture – Vector Equilibrium

Magnetic Games — Sat, 27 Jan 2018 16:25:17 +0000

A magnetic sculpture using decorative hollow steel sphere.

A cuboctahedron is a polyhedron with 8 triangular faces and 6 square faces.

The Vector Equilibrium is the only geometric form wherein all of the vectors are of equal length. This includes both from its center point out to its circumferential vertices, and the edges connecting all of those vertices.

Another way of deriving the geometry of the VE is by using 13 spheres of the same diameter. one sphere magnet as the center point, twelve steel spheres around the nucleus. The centers of each sphere will be equidistant from all of their adjacent neighbors. The VE also has the attribute of consisting of four hexagons symmetrically arrayed in four planes.

Fascinated by this form I decided to explore its unique geometry on a bigger scale. I glued magnets to the hollow stainless steel spheres hence allowing them to be attached to the solid metal center sphere. Metal rod was welded to the central sphere. The smaller metal ball welded at the other end of the rod acts as a magnetically suspended bearing. More magnets and metal parts were added to compensate the smaller diameter of the middle sphere.

The lines connecting their centers of the spheres are the vectors. Because it’s an array of 12 spheres around one central sphere, we can refer this as a 12-around-1 system. We can then consider this system when we examine the cosmometric relationships of 12-based systems such as the 12-tone music scale or astrological zodiac.

With all vectors being exactly the same length and angular relationship, from an energetic perspective, the VE represents the ultimate and perfect condition wherein the movement of energy comes to a state of absolute equilibrium, and therefore absolute stillness and nothingness. It’s a primary pattern, fundamental to the creation of the universe at all scales.

Because the VE has these four hexagonal planes defining its spatial coordinates, One the greatest minds of out times, Buckminster Fuller says that the foundation of the cosmic geometry is actually 4-dimensional, as opposed to the conventional 3-dimensional 90° X,Y,Z coordinate system historically assumed to be fundamental.

The VE is the true zero reference of the energetic mathematics. Zero pulsation in the VE is the nearest approach we will ever know to eternity and god: the zero phase of conceptual integrity inherent in the positive and negative assymmetries that propagate the differentials of consciousness.

From: Magnet Tricks

Build your Magnetic Boots

Magnetic Games — Mon, 22 Jan 2018 16:48:13 +0000

Walking across large, metal pipes in search of urban adventure…
“Hey, magnet shoes would be handy!!” Get build my very own magnetic shoes!

This tutorial is an overview of they build process for a magnetic boot prototype in hopes of inspiring you to build and test your own fantastic, whimsical ideas! ‘Cause seriously, making ideas come to life feels like a superpower.

Read all on Instructables

What do you think about it? Have a nice upside down walking!!

Ferrofluid dance

Magnetic Games — Wed, 17 Jan 2018 21:41:45 +0000

A ferrofluid (portmanteau of ferromagnetic and fluid) is a liquid that becomes strongly magnetized in the presence of a magnetic field. Ferrofluid was invented in 1963 by NASA’s Steve Papell as a liquid rocket fuel that could be drawn toward a pump inlet in a weightless environment by applying a magnetic field.

A magnetic liquid is used in lieu of wax for the novelty item commonly called a lava lamp. Ferrofluids are colloidal liquids made of nanoscale ferromagnetic, or ferrimagnetic, particles suspended in a carrier fluid (usually an organic solvent or water). Each tiny particle is thoroughly coated with a surfactant to inhibit clumping. Large ferromagnetic particles can be ripped out of the homogeneous colloidal mixture, forming a separate clump of magnetic dust when exposed to strong magnetic fields.

The magnetic attraction of nanoparticles is weak enough that the surfactant’s Van der Waals force is sufficient to prevent magnetic clumping or agglomeration. Ferrofluids usually do not retain magnetization in the absence of an externally applied field and thus are often classified as “superparamagnets” rather than ferromagnets.

The difference between ferrofluids and magnetorheological fluids (MR fluids) is the size of the particles. The particles in a ferrofluid primarily consist of nanoparticles which are suspended by Brownian motion and generally will not settle under normal conditions. MR fluid particles primarily consist of micrometre-scale particles which are too heavy for Brownian motion to keep them suspended, and thus will settle over time because of the inherent density difference between the particle and its carrier fluid. These two fluids have very different applications as a result.

Source: Wikipedia.org

Slime eating Magnets

Magnetic Games — Tue, 16 Jan 2018 21:18:42 +0000

These ‘Magnetic Games’ feature ‘slime-eating magnets’ and other magnetic experiments

From Tech Insider

Scientists discovered a 2-D magnet

Magnetic Games — Sat, 17 Jun 2017 21:00:39 +0000

For the first time, scientists have discovered magnetism in the 2-D world of monolayers, or materials that are formed by a single atomic layer. The findings demonstrate that magnetic properties can exist even in the 2-D realm — opening a world of potential applications.

A team led by the University of Washington and the Massachusetts Institute of Technology has for the first time discovered magnetism in the 2-D world of monolayers, or materials that are formed by a single atomic layer. The findings, published June 8 in the journal Nature, demonstrate that magnetic properties can exist even in the 2-D realm — opening a world of potential applications.

“What we have discovered here is an isolated 2-D material with intrinsic magnetism, and the magnetism in the system is highly robust,” said Xiaodong Xu, a UW professor of physics and of materials science and engineering, and member of the UW’s Clean Energy Institute. “We envision that new information technologies may emerge based on these new 2-D magnets.”

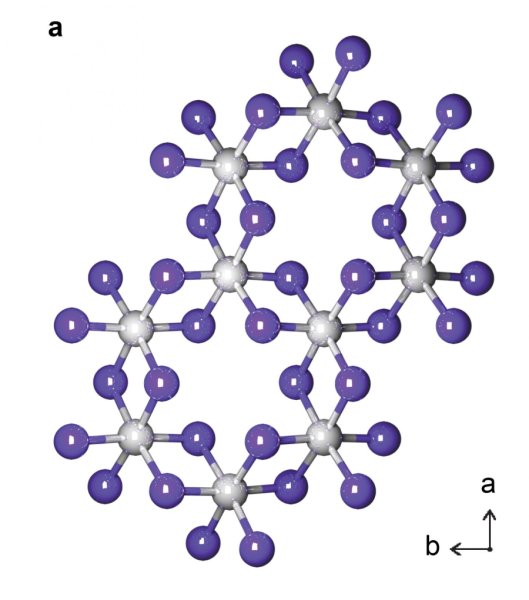

Xu and MIT physics professor Pablo Jarillo-Herrero led the international team of scientists who proved that the material — chromium triiodide, or CrI3 — has magnetic properties in its monolayer form.

Other groups, including co-author Michael McGuire at the Oak Ridge National Laboratory, had previously shown that CrI3 — in its multilayered, 3-D, bulk crystal form — is ferromagnetic. In ferromagnetic materials, the “spins” of constituent electrons, analogous to tiny, subatomic magnets, align in the same direction even without an external magnetic field.

But no 3-D magnetic substance had previously retained its magnetic properties when thinned down to a single atomic sheet. In fact, monolayer materials can demonstrate unique properties not seen in their multilayered, 3-D forms.

“You simply cannot accurately predict what the electric, magnetic, physical or chemical properties of a 2-D monolayer crystal will be based on the behavior of its 3-D bulk counterpart,” said co-lead author and UW doctoral student Bevin Huang.

Atoms within monolayer materials are considered “functionally” two-dimensional because the electrons can only travel within the atomic sheet, like pieces on a chessboard.

To discover the properties of CrI3 in its 2-D form, the team used Scotch tape to shave a monolayer of CrI3 off the larger, 3-D crystal form.

“Using Scotch tape to exfoliate a monolayer from its 3-D bulk crystal is surprisingly effective,” said co-lead author and UW doctoral student Genevieve Clark. “This simple, low-cost technique was first used to obtain graphene, the 2-D form of graphite, and has been used successfully since then with other materials.”

In ferromagnetic materials, the aligned spins of electrons leave a telltale signature when a beam of polarized light is reflected off the material’s surface. The researchers detected this signature in CrI3 using a special type of microscopy. It is the first definitive sign of intrinsic ferromagnetism in an isolated monolayer.

Surprisingly, in CrI3 flakes that are two layers thick, the optical signature disappeared. This indicates that the electron spins are oppositely aligned to one another, a term known as anti-ferromagnetic ordering.

Ferromagnetism returned in three-layer CrI3. The scientists will need to conduct further studies to understand why CrI3 displayed these remarkable layer-dependent magnetic phases. But to Xu, these are just some of the truly unique properties revealed by combining monolayers.

“2-D monolayers alone offer exciting opportunities to study the drastic and precise electrical control of magnetic properties, which has been a challenge to realize using their 3-D bulk crystals,” said Xu. “But an even greater opportunity can arise when you stack monolayers with different physical properties together. There, you can get even more exotic phenomena not seen in the monolayer alone or in the 3-D bulk crystal.”

Much of Xu’s research centers on creating heterostructures, which are stacks of two different ultrathin materials. At the interface between the two materials, his team searches for new physical phenomena or new functions to allow potential applications in computing and information technologies.

In a related advance, Xu’s research group, UW electrical engineering and physics professor Kai-Mei Fu led a team of colleagues published a paper May 31 in Science Advances showing that an ultrathin form of CrI3, when stacked with a monolayer of tungsten diselenide, creates a ultraclean “heterostructure” interface with unique and unexpected photonic and magnetic properties.

“Heterostructures hold the greatest promise of realizing new applications in computing, database storage, communications and other applications we cannot even fathom yet,” said Xu.

Xu and his team would next like to investigate the magnetic properties unique to 2-D magnets and heterostructures that contain a CrI3 monolayer or bilayer.

Materials provided by University of Washington.
